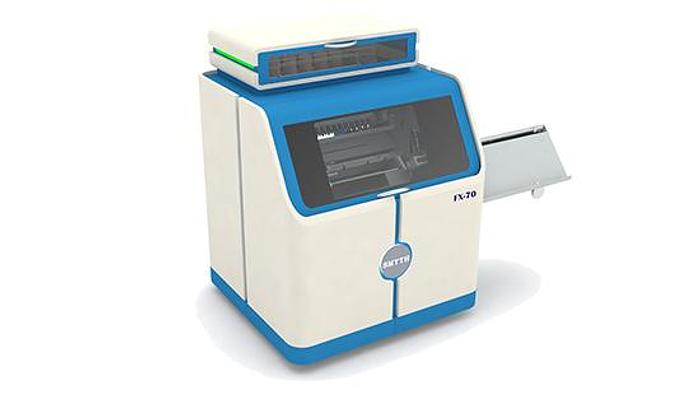

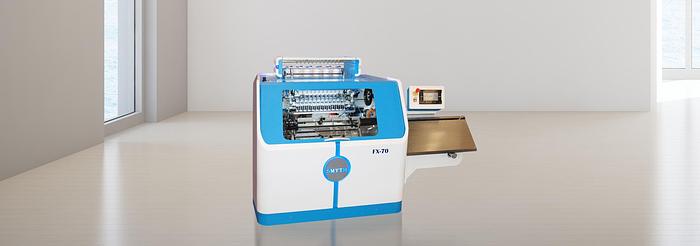

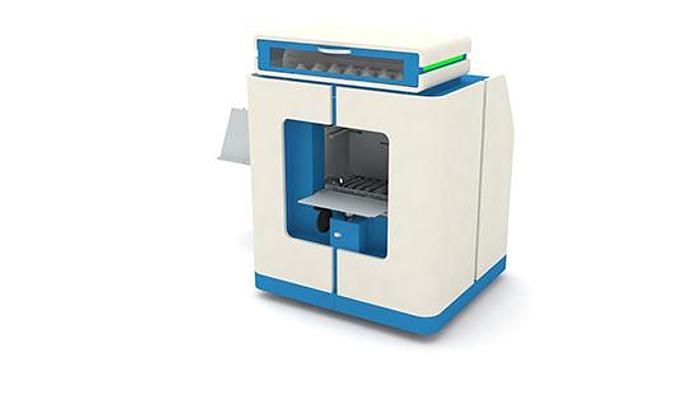

Smyth FX-70
Smyth FX-70
Contact us for price
Location:Čestlice, Czechia
Description
The Smyth semi-automatic sewing machine FX-70 belongs to a new generation of book sewing machines, which are specially designed for short-term production and provide a quality strong book. This model is designed for manual casting and can be expanded with an automatic loader if required. Easy and fast operation is a benefit for a quick change of orders in low-cost book processing. Specially developed for small and medium orders with high format variability. The robust and proven design of the branded manufacturer guarantees reliability. Semi-automatic feeding with side loading Proven brand for quality sewn books Easy to use Quick and easy readjustment when changing orders
Specifications
| Manufacturer | Smyth |
| Model | FX-70 |
| Condition | New |
| Type | New |
| Max and min. folder format | 520 (back) x 360 (width) mm / 135 (back) x 85 (width) mm |
| Max. mechanical speed | 120 cycles / min. |
| Number of stitches | 12 |
| Stitch length | 24 mm |
| Range of weight | 50 - 150 gsm |
| Max. a min. folder format | 520 (back) x 360 (width) mm / 135 (back) x 85 (width) mm |
| Weight range | 50 - 150 gsm |
| Equipment weight | 990 kg |
| Air requirements | max. 200 Ni / min. at 5 bar |
| Electrical connection and consumption | 230V / 400V / 50Hz 3 phases, consumption 2.5 kW |
| Device weight | 990 kg |
| Device dimensions | 2,100 x 1,200 x 1,300 mm (L x W x D) |
| Equipment dimensions | 2,100 x 1,200 x 1,300 mm (L x W x D) |
