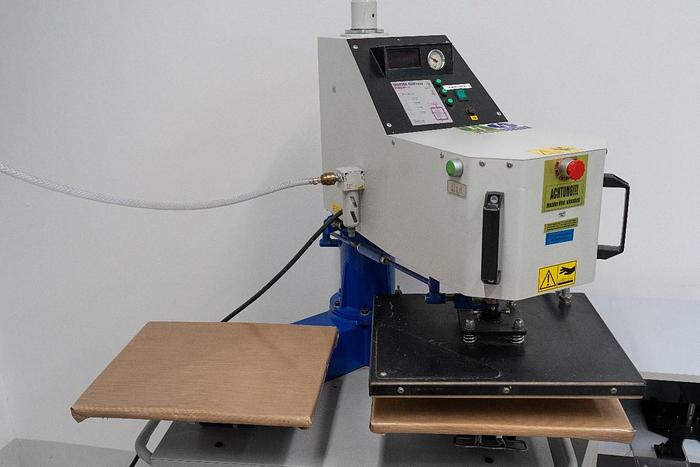

Thermal Transfer Press

Year: 2005 Status: functional

Model: Schulze Air press x Double pneumatic transfer press, semi-automatic model. The pressure can be adjusted using an air pressure gauge, which also ensures the same pressure regardless of the quality of the garment. Digital temperature and time control. After the transfer is complete, the will open automatically. Bottom plates are available in different sizes. • Print format: 400 x 500 • Dimensions: 1.67 x 0.74 x 0.98 m • Weight (including packaging): 170 kg • Power consumption: 10 A / 230 V • Temperature: max. 220 °C • Temperature accuracy: ± 0.5% • Power: 2.4 kW • Heating time: 12 min. at 180 °C • Timer range: max. 9 min., 59 sec. • Operating pressure: 2490 kg
