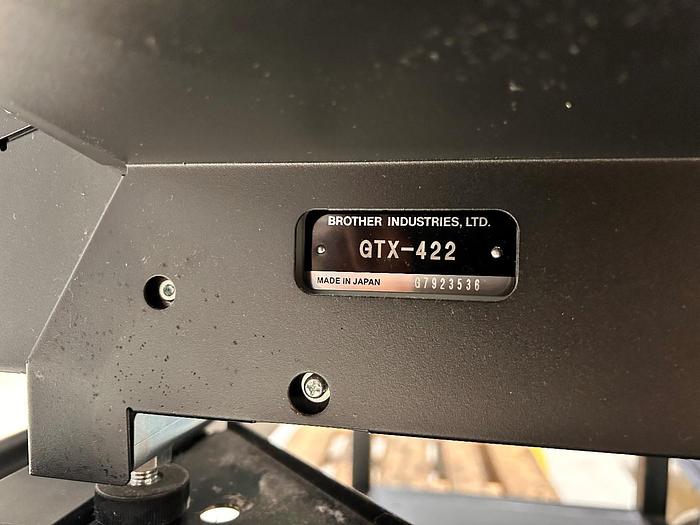

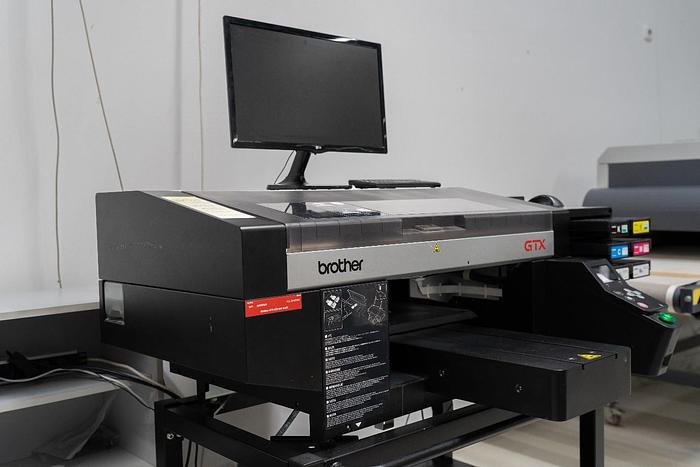

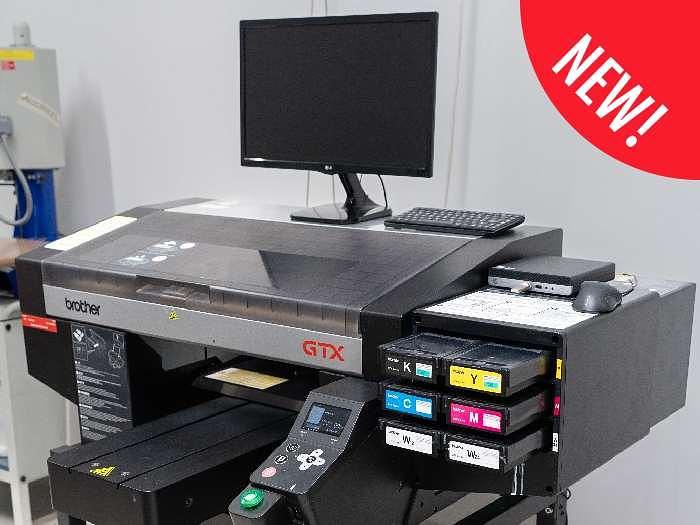

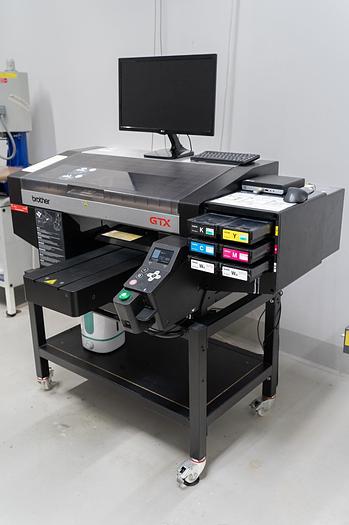

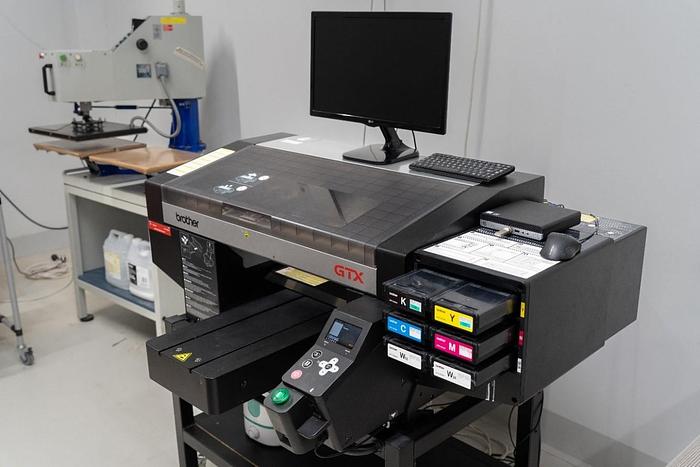

Brother-GTX-422

Year: 2017 Status: functional - CMYK head replacement in 2022

-plus one spare parts machine Printing Method Direct Inkjet Garment Printer Machine Size 55” (W) x 51” (D) x 21” (H) (1400mm x 1290mm x 535mm) Machine weight 260 lb (approx. 118 kg) Plate Sizes Maximum print size is 16” x 21” / 40.6cm x 53.3cm For a list of all available plate sizes contact a Brother DTG specialist. Plate size included 14” x 16” (35.6cm x 40.6cm) Ink type Water pigment ink | C, M, Y, K, W Number of print heads 2 print heads / 8 ink channels Print resolution 1200 dpi x 1200 dpi Print mode Single or double for CMYK. Background and highlights for white. Data output Printer driver (USB, output to file) Power supply AC 100V-240V, 50/60Hz ± 1Hz Power consumption 0.8A (average) (Reference: 0.3A - during circulation) Ink Fixing The heat press can be used at 356°F (180°C) and a duration of 35 seconds. Recommended for higher volume production use a belt oven at 320° (160°C) for three and a half minutes. Time and temperature may vary depending on the one used dryer from a specific manufacturer. Supported OS Windows® 7(32 bit/64 bit), Windows 8.1(32 bit/64 bit), Windows 10(32 bit/64 bit), Mac OS® X v10.11.x Interface USB2.0, LAN (10 BASE-T, 100 BASE-TX), USB Flash memory (under 32GB, FAT32 format) Conditions for the operation of the driver 3GHz CPU (minimum recommendation), 5GB RAM Display resolution XGA(1024x769) (minimum recommendation) Recommended apps CorelDRAW® X7/X8, Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, Adobe® Photoshop Elements 14/15, GTX Graphics Lab
