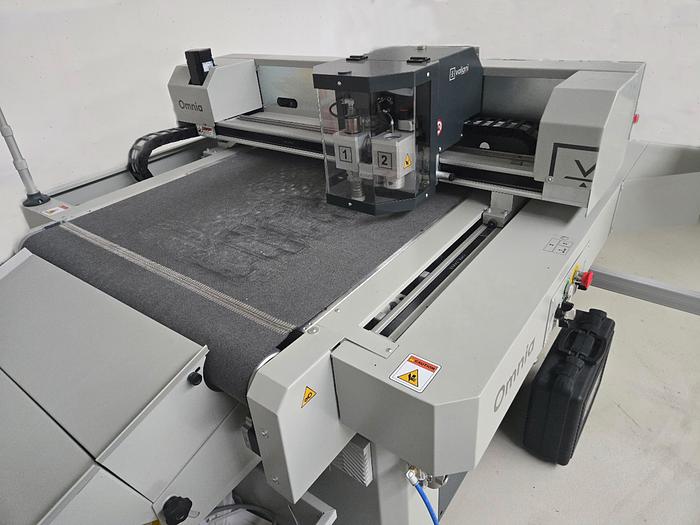

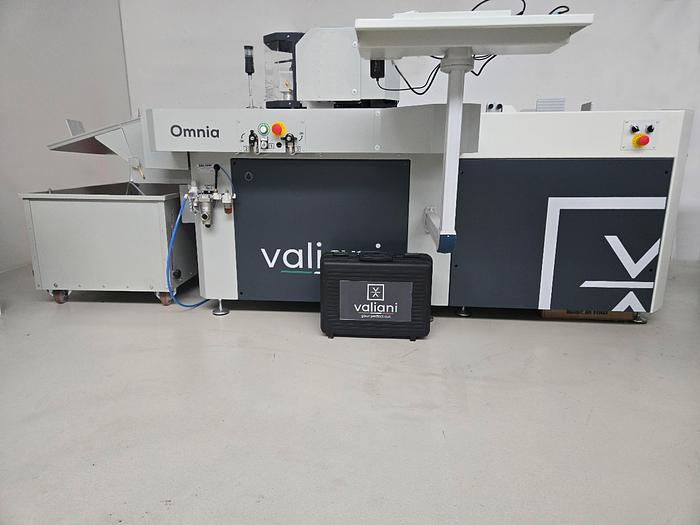

Valiani Omnia 80

Year: 2021

Condition: functional

Technical specification:

• cutting Size Width Depth - 600x800 mm (23.6x31.5”)
• width - 1617 mm/2190 mm w PC (63.6”/86.2”)
• depth  - 3835 mm (150.9”)
• height - 1320 mm (52”)
• weight - 850 Kg (1874 lbs)
• minimum media size - 297x210 mm (A4) (11.6x8.2”) Portrait
• maximum die-cutting size - 590x790 mm (23.2x31.1”)
• width with safety mat - 3280 mm (129,2”) W/Safety mat
• max cutting speed - 1.350 mm (53,1”)/sec (129,2”)
• acceleration - 3 m (118”)/s2
• power requirements - 3-Phase - 400 V – 50/60 Hz 13A
• power - 5,5 KVA

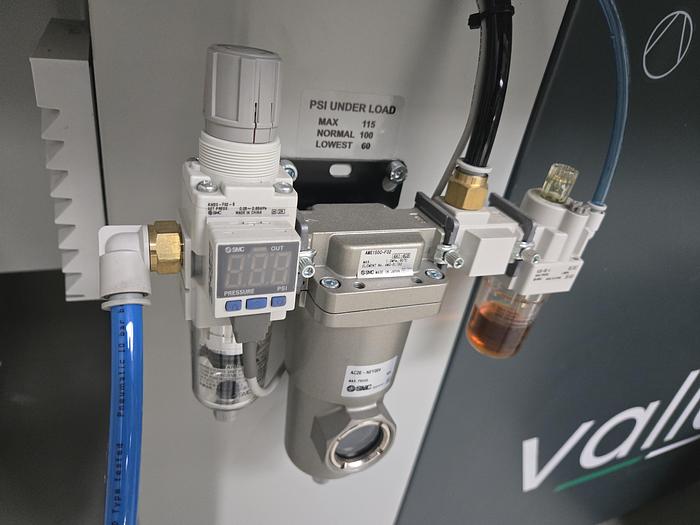

• air requirements - 6 BAR/90 PSI (3.5 CFM) / 8 BAR/115 PSI (5.3 CFM) with oscillating tool
• file format - SVG, .PLT, .DXF, .CF2, .HPGL, .XML, .PDF
• tool - change manual

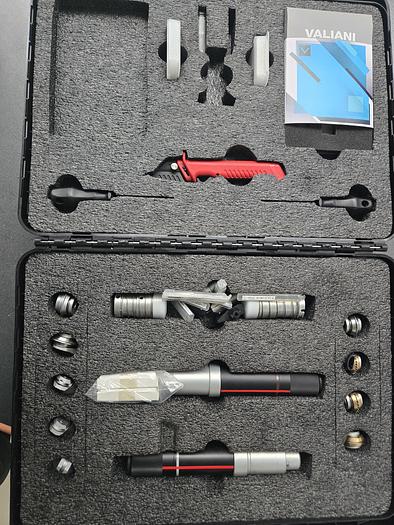

• tools - availabile 90°, 45°, 40°, embossing, creasing and oscillating tool

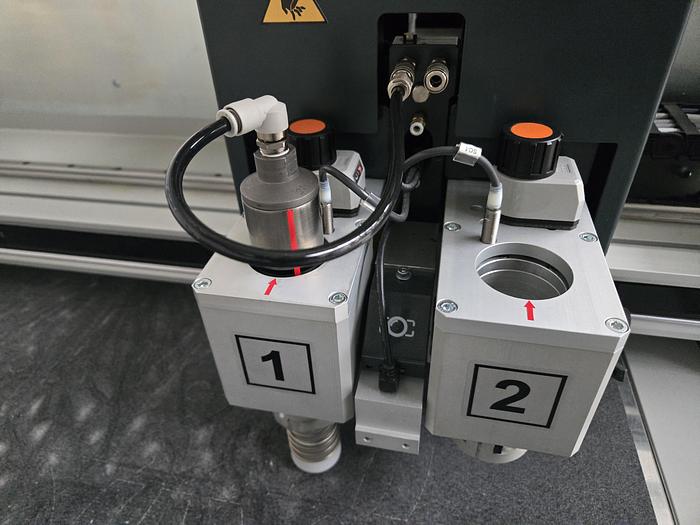

• tools Holder 2 + (1F)
• connectivity - ethernet + USB
• data buffer - external PC
• media hold system - vacuum
• fixed tool - NA
• feeder capacity - 600 Sheets (300 gsm) - H. 200 mm (7,8”)
• cutting capacity - 0.1 > 5 mm (0,19”) with tangential blade 0.1 > 12,7 mm (0,5”) with oscillating Blade
• repeatability - ≤0.1 mm
• supported - OS Windows 7, 10, 11
• cropMarks Rec. - camera + software (Included)
